webflux+springsecrity+thymeleaf自定义登录页
最近在做网关相关的东西,Spring Cloud Gateway是用的WebFlux框架,和WebMvc框架有很大的区别,具体有什么区别大家可以自行百度。 网关侧有一些需要验证的路径,自己又不想写登录接口、验证等等,所以就整合了springsecrity 做简单的验证。springsecrity 本身自带登录页面,但是不太符合系统的风格,于是就想把默认的登录页面替换调。本来以为就是替换个页面的事情,以为很简单,但是在过程中遇到了很多问题,特此记录一下。
添加依赖
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-thymeleaf</artifactId>
</dependency>
<dependency>
<groupId>org.thymeleaf.extras</groupId>
<artifactId>thymeleaf-extras-springsecurity5</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-webflux</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-security</artifactId>
</dependency>
application.yml配置文件
spring:
thymeleaf:
prefix: classpath:/templates/
suffix: .html
security:
user:
name: admin
password: 123456
roles: SUPERUSER
然后在resources目录下创建templates目录,用于存放页面,然后创建一个登陆页面login.html, 如下:
<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.w3.org/1999/xhtml">
<head>
<link rel="icon" type="image/x-icon" href="favicon.ico" />
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<meta charset="UTF-8">
<title>登录页面</title>
<style>
body {
background-color: #F5F6F8;
}
.loginF {
margin: 150px auto 0;
width: 400px;
height: 420px;
background-color: #fff;
border-radius: 5px;
box-shadow: 10px 10px 20px 10px #E1E2E4
}
tr {
color: #C6C6C6;
font-weight: lighter;
width: 400px;
display: block;
height: 40px;
line-height: 40px;
}
</style>
</head>
<body>
<div style="">
<form action="/login" method="post" class="loginF">
<table style="display:block;margin: 0 auto;">
<tr style="margin-top: 50px;">
<td style="text-align: center;color: #4381e6; font-size: 30px;width: 400px">
账号登录
</td>
</tr>
<tr style="margin-top: 50px">
<td style="padding-left: 60px">
<input name="username" type="text" placeholder="用户名:" style="width: 280px;height: 30px;line-height: 30px;border:0px;border-bottom: solid 1px #C6C6C6"/>
</td>
</tr>
<tr style="margin-top: 10px;">
<td style="padding-left: 60px">
<input name="password" type="password" placeholder="密码" style="width: 280px;height: 30px;line-height: 30px;border:0px;border-bottom: solid 1px #C6C6C6"/>
</td>
</tr>
<tr>
<td style="text-align: center;width: 400px;padding-top: 20px;">
<span style="color:#FF3B30" th:if="${param.error}" th:text="${session?.SPRING_SECURITY_LAST_EXCEPTION?.message}"></span>
</td>
</tr>
<tr style="margin-top: 30px;">
<td style="width: 400px;" align="center">
<input value="登录" type="submit" style="display:block;width: 300px;height: 40px;line-height: 40px;border-radius: 10px;color: #fff;background-image: linear-gradient(to left,#4381e6,#11C1E6);border: 0px;"/>
</td>
</tr>
</table>
</form>
</div>
</body>
</html>
springsecrity配置类
@Slf4j
@Configuration
@EnableWebFluxSecurity
public class SecurityConfig {
ServerAuthenticationFailureHandler failureHandler = new FormAuthenticationFailureHandler("/login?error");
ServerLogoutSuccessHandler logoutSuccessHandler = new FormServerLogoutSuccessHandler("/login?logout");
@Bean
public SecurityWebFilterChain springSecurityFilterChain(ServerHttpSecurity http) {
http
.formLogin() // 表单方式
.loginPage("/login")
.requiresAuthenticationMatcher(ServerWebExchangeMatchers.pathMatchers(HttpMethod.POST,"/login"))
.authenticationFailureHandler(failureHandler)
.and()
.logout()
// 注销操作的URL
.requiresLogout(ServerWebExchangeMatchers.pathMatchers(HttpMethod.GET,"/logout"))
.logoutSuccessHandler(logoutSuccessHandler)
.and()
.authorizeExchange()
.pathMatchers("/index")
.authenticated()
.anyExchange()
.permitAll()
.and()
.csrf()
.disable()
.cors();
return http.build();
}
}
自定义handler类
public class FormAuthenticationFailureHandler implements ServerAuthenticationFailureHandler {
private final URI location;
private ServerRedirectStrategy redirectStrategy = new DefaultServerRedirectStrategy();
public FormAuthenticationFailureHandler(String location) {
Assert.notNull(location, "location cannot be null");
this.location = URI.create(location);
}
@Override
public Mono<Void> onAuthenticationFailure(WebFilterExchange exchange, AuthenticationException exception) {
exchange.getExchange().getSession().block().getAttributes().put(WebAttributes.AUTHENTICATION_EXCEPTION, exception);
return this.redirectStrategy.sendRedirect(exchange.getExchange(), this.location);
}
}
public class FormServerLogoutSuccessHandler implements ServerLogoutSuccessHandler {
public static final String DEFAULT_LOGOUT_SUCCESS_URL = "/login?logout";
private URI logoutSuccessUrl = URI.create(DEFAULT_LOGOUT_SUCCESS_URL);
private ServerRedirectStrategy redirectStrategy = new DefaultServerRedirectStrategy();
public FormServerLogoutSuccessHandler(String logoutSuccessUrl) {
Assert.notNull(logoutSuccessUrl, "logoutSuccessUrl cannot be null");
this.logoutSuccessUrl = URI.create(logoutSuccessUrl);
}
@Override
public Mono<Void> onLogoutSuccess(WebFilterExchange exchange, Authentication authentication) {
exchange.getExchange().getSession().block().invalidate();
return this.redirectStrategy
.sendRedirect(exchange.getExchange(), this.logoutSuccessUrl);
}
}
自定义跳转登录页和注销接口
@Controller
public class IndexController {
@GetMapping("/index")
public String index() {
return "index";
}
@GetMapping("/login")
public String toLogin() {
return "login";
}
@GetMapping("/logout")
public String logout() {
return "login";
}
}

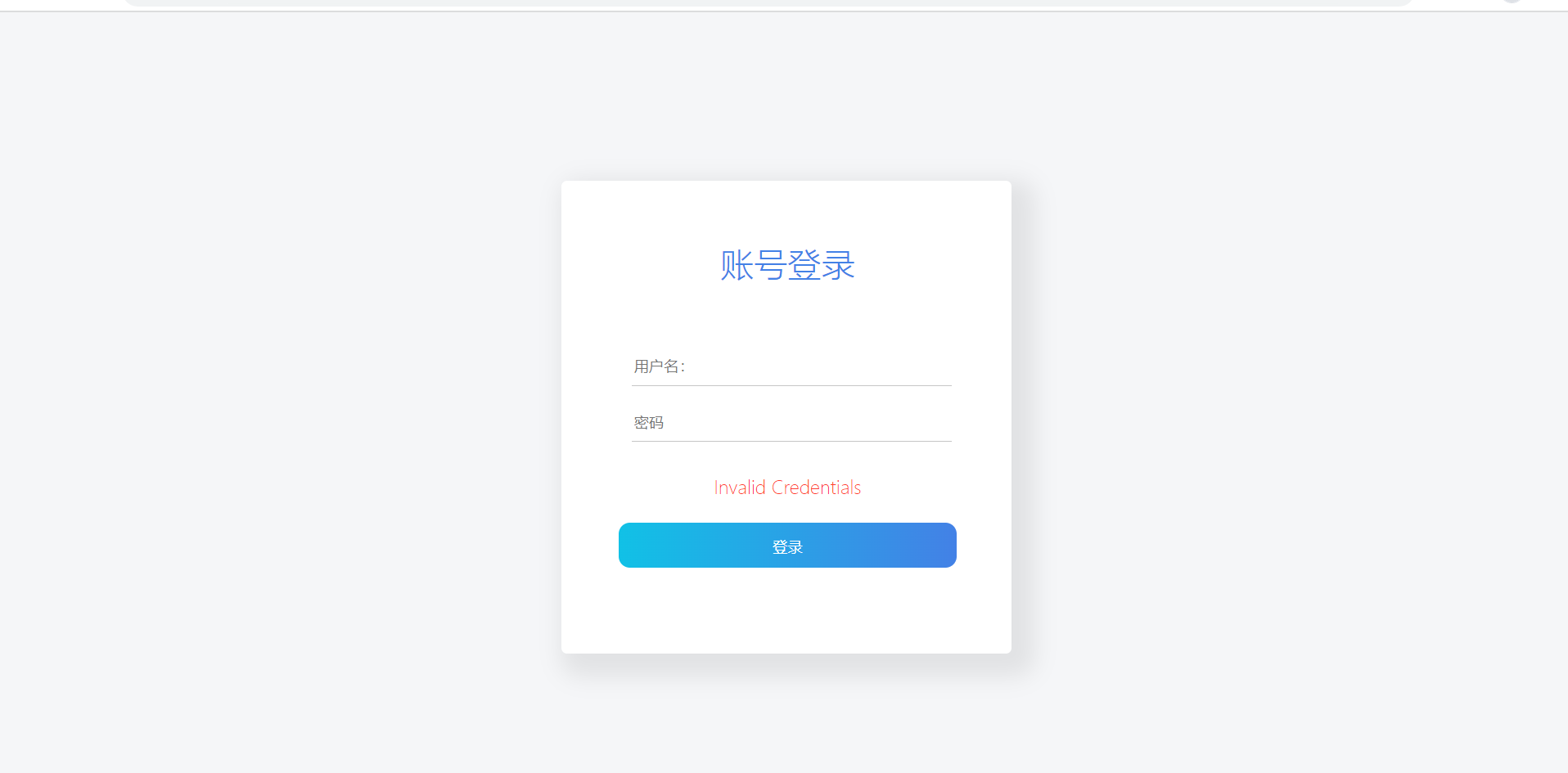

启动服务,访问服务地址+/index, 会跳转到我们自定义的登录页面,输入错误的账号或密码,如下:
此时,替换登录页面完成,并且也可以展示错误信息!
