Spring Cloud Gateway 实现Token校验
在我看来，在某些场景下，网关就像是一个公共方法，把项目中的都要用到的一些功能提出来，抽象成一个服务。比如，我们可以在业务网关上做日志收集、Token校验等等，当然这么理解很狭隘，因为网关的能力远不止如此，但是不妨碍我们更好地理解它。下面的例子演示了，如何在网关校验Token，并提取用户信息放到Header中传给下游业务系统。
1. 生成Token

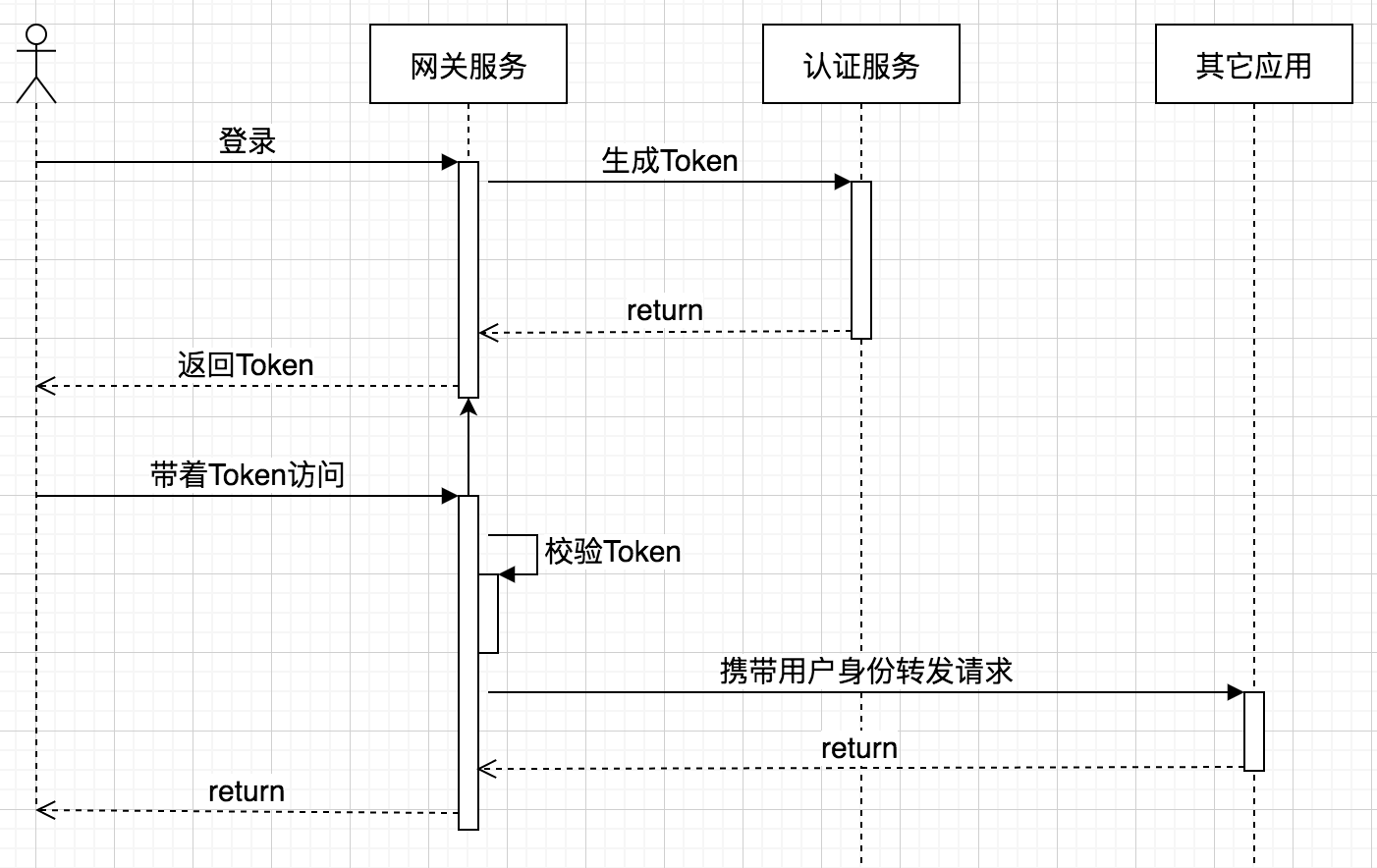

用户登录成功以后，生成token，此后的所有请求都带着token。网关负责校验token，并将用户信息放入请求Header，以便下游系统可以方便的获取用户信息。
为了方便演示，本例中涉及三个工程
公共项目：commons-jwt
认证服务：auth-service
网关服务：gateway-service
1.1. Token生成与校验工具类
因为生成token在认证服务中，token校验在网关服务中，因此，我把这一部分写在了公共项目commons-jwt中
pom.xml
<dependencies>
<dependency>
<groupId>com.auth0</groupId>
<artifactId>java-jwt</artifactId>
<version>3.10.0</version>
</dependency>
<dependency>
<groupId>org.apache.commons</groupId>
<artifactId>commons-lang3</artifactId>
<version>3.9</version>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>fastjson</artifactId>
<version>1.2.66</version>
</dependency>
</dependencies>
JWTUtil.java
public class JWTUtil {
private static final String USER_INFO_KEY = "username";
/**
* 生成Token
* @param issuser 签发者
* @param username 用户标识(唯一)
* @param secretKey 签名算法以及密匙
* @param tokenExpireTime 过期时间
* @return
*/
public static String generateToken(String issuser, String username, String secretKey, long tokenExpireTime) {
Algorithm algorithm = Algorithm.HMAC256(secretKey);
Date now = new Date();
Date expireTime = new Date(now.getTime() + tokenExpireTime);
String token = JWT.create()
.withIssuer(issuser)
.withIssuedAt(now)
.withExpiresAt(expireTime)
.withClaim(USER_INFO_KEY, username)
.sign(algorithm);
return token;
}
/**
* 校验Token
* @param issuser 签发者
* @param token 访问秘钥
* @param secretKey 签名算法以及密匙
* @return
*/
public static void verifyToken(String issuser, String token, String secretKey) {
try {
Algorithm algorithm = Algorithm.HMAC256(secretKey);
JWTVerifier jwtVerifier = JWT.require(algorithm).withIssuer(issuser).build();
jwtVerifier.verify(token);
} catch (JWTDecodeException jwtDecodeException) {
throw new TokenAuthenticationException(ResponseCodeEnum.TOKEN_INVALID.getCode(), ResponseCodeEnum.TOKEN_INVALID.getMessage());
} catch (SignatureVerificationException signatureVerificationException) {
throw new TokenAuthenticationException(ResponseCodeEnum.TOKEN_SIGNATURE_INVALID.getCode(), ResponseCodeEnum.TOKEN_SIGNATURE_INVALID.getMessage());
} catch (TokenExpiredException tokenExpiredException) {
throw new TokenAuthenticationException(ResponseCodeEnum.TOKEN_EXPIRED.getCode(), ResponseCodeEnum.TOKEN_INVALID.getMessage());
} catch (Exception ex) {
throw new TokenAuthenticationException(ResponseCodeEnum.UNKNOWN_ERROR.getCode(), ResponseCodeEnum.UNKNOWN_ERROR.getMessage());
}
}
/**
* 从Token中提取用户信息
* @param token
* @return
*/
public static String getUserInfo(String token) {
DecodedJWT decodedJWT = JWT.decode(token);
String username = decodedJWT.getClaim(USER_INFO_KEY).asString();
return username;
}
}
ResponseCodeEnum.java
public enum ResponseCodeEnum {
SUCCESS(0, "成功"),
FAIL(-1, "失败"),
LOGIN_ERROR(1000, "用户名或密码错误"),
UNKNOWN_ERROR(2000, "未知错误"),
PARAMETER_ILLEGAL(2001, "参数不合法"),
TOKEN_INVALID(2002, "无效的Token"),
TOKEN_SIGNATURE_INVALID(2003, "无效的签名"),
TOKEN_EXPIRED(2004, "token已过期"),
TOKEN_MISSION(2005, "token缺失"),
REFRESH_TOKEN_INVALID(2006, "刷新Token无效");
private int code;
private String message;
ResponseCodeEnum(int code, String message) {
this.code = code;
this.message = message;
}
public int getCode() {
return code;
}
public String getMessage() {
return message;
}
}
ResponseResult.java
@Builder
@Data
public class ResponseResult {
private int code = 0;
private String msg;
private Object data;
}
MD5Util.java
@Slf4j
public class MD5Util {
public static String getMD5Str(String str) {
byte[] digest = null;
try {
MessageDigest md5 = MessageDigest.getInstance("md5");
digest = md5.digest(str.getBytes("utf-8"));
} catch (NoSuchAlgorithmException e) {
log.error(e.getMessage(), e);
} catch (UnsupportedEncodingException e) {
log.error(e.getMessage(), e);
}
//16是表示转换为16进制数
String md5Str = new BigInteger(1, digest).toString(16);
return md5Str;
}
}
TokenAuthenticationException
public class TokenAuthenticationException extends RuntimeException {
private int code;
private String message;
public TokenAuthenticationException(int code, String message) {
super();
this.code = code;
this.message = message;
}
}
1.2. 生成token
这一部分在auth-service中
pom.xml
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.apache.commons</groupId>
<artifactId>commons-lang3</artifactId>
<version>3.9</version>
</dependency>
<dependency>
<groupId>commons-codec</groupId>
<artifactId>commons-codec</artifactId>
<version>1.14</version>
</dependency>
<dependency>
<groupId>org.apache.commons</groupId>
<artifactId>commons-pool2</artifactId>
<version>2.8.0</version>
</dependency>
<dependency>
<groupId>com.mk</groupId>
<artifactId>commons-jwt</artifactId>
<version>1.0-SNAPSHOT</version>
</dependency>
<!-- mybatis-plus依赖 -->
<dependency>
<groupId>com.baomidou</groupId>
<artifactId>mybatis-plus-boot-starter</artifactId>
<version>3.1.1</version>
</dependency>
<dependency>
<groupId>com.baomidou</groupId>
<artifactId>mybatis-plus</artifactId>
<version>3.1.1</version>
</dependency>
<!-- mysql组件 -->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
</dependency>
</dependencies>
application.yml
server:
port: 8080
spring:
application:
name: auth-service
redis:
url: redis://10.32.15.78:6379
datasource:
url: jdbc:mysql://localhost:3306/test?useUnicode=true&characterEncoding=UTF-8&useSSL=false
username: root
password: 123456
druid:
# 验证连接是否有效。此参数必须设置为非空字符串，下面三项设置成true才能生效
validation-query: SELECT 1
# 连接是否被空闲连接回收器(如果有)进行检验. 如果检测失败, 则连接将被从池中去除
test-while-idle: true
# 是否在从池中取出连接前进行检验, 如果检验失败, 则从池中去除连接并尝试取出另一个
test-on-borrow: true
# 是否在归还到池中前进行检验
test-on-return: false
# 连接在池中最小生存的时间，单位是毫秒
min-evictable-idle-time-millis: 30000
#mybatis配置
mybatis-plus:
type-aliases-package: com.mk.auth.entity
mapper-locations: classpath:mapper/**/*.xml
global-config:
db-config:
id-type: auto
field-strategy: not_empty
logic-delete-value: 1
logic-not-delete-value: 0
configuration:
map-underscore-to-camel-case: true
cache-enabled: false
call-setters-on-nulls: true
log-impl: org.apache.ibatis.logging.stdout.StdOutImpl
OauthController.java
@RestController
@RequestMapping("/oauth")
public class OauthController {
@Value("${secretKey:!@#$%^&*}")
private String secretKey;
@Value("${issuser:mark}")
private String issuser;
@Value("${tokenExpireTime:30}")
private long tokenExpireTime;
@Autowired
private RedisTemplate redisTemplate;
@Autowired
private UserService userService;
private static final String TOKEN_CACHE_PREFIX = "auth-service:";
/**
* 获取token
* @param request
* @param bindingResult
* @return
*/
@PostMapping("/getToken")
public ResponseResult getToken(@RequestBody @Validated TokenRequest request, BindingResult bindingResult) {
if (bindingResult.hasErrors()) {
return ResponseResult
.builder()
.code(ResponseCodeEnum.PARAMETER_ILLEGAL.getCode())
.msg(ResponseCodeEnum.PARAMETER_ILLEGAL.getMessage())
.build();
}
LambdaQueryWrapper<User> wrapper = new QueryWrapper<User>().lambda();
wrapper.eq(User::getUsername, request.getUsername());
wrapper.eq(User::getPassword, request.getPassword());
User user = userService.getOne(wrapper);
if (user != null) {
// 生成Token
String token = JWTUtil.generateToken(issuser, user.getUsername(), secretKey, tokenExpireTime * 1000);
// 生成刷新Token
String refreshToken = UUID.randomUUID().toString().replace("-", "");
// 放入缓存
String key = MD5Util.getMD5Str(user.getUsername());
HashOperations<String, String, String> hashOperations = redisTemplate.opsForHash();
hashOperations.put(TOKEN_CACHE_PREFIX + key, "token", token);
hashOperations.put(TOKEN_CACHE_PREFIX + key, "refreshToken", refreshToken);
redisTemplate.expire(TOKEN_CACHE_PREFIX + key, tokenExpireTime, TimeUnit.SECONDS);
TokenResult data = TokenResult.builder()
.access_token(token)
.refresh_token(refreshToken)
.username(user.getUsername())
.expires_in(tokenExpireTime)
.build();
return ResponseResult
.builder()
.code(ResponseCodeEnum.SUCCESS.getCode())
.msg(ResponseCodeEnum.SUCCESS.getMessage())
.data(data)
.build();
}
return ResponseResult
.builder()
.code(ResponseCodeEnum.LOGIN_ERROR.getCode())
.msg(ResponseCodeEnum.LOGIN_ERROR.getMessage())
.build();
}
/**
* 删除token
* @param username
* @return
*/
@GetMapping("/delToken")
public ResponseResult deltoken(@RequestParam("username") String username) {
HashOperations<String, String, String> hashOperations = redisTemplate.opsForHash();
String key = MD5Util.getMD5Str(username);
hashOperations.delete(TOKEN_CACHE_PREFIX + key);
return ResponseResult
.builder()
.code(ResponseCodeEnum.SUCCESS.getCode())
.msg(ResponseCodeEnum.SUCCESS.getMessage())
.build();
}
/**
* 刷新Token
*/
@PostMapping("/refreshToken")
public ResponseResult refreshToken(@RequestBody @Validated RefreshRequest request, BindingResult bindingResult) {
String refreshToken = request.getRefreshToken();
HashOperations<String, String, String> hashOperations = redisTemplate.opsForHash();
String key = MD5Util.getMD5Str(request.getUsername());
String originalRefreshToken = hashOperations.get(TOKEN_CACHE_PREFIX + key, "refreshToken");
if (StringUtils.isBlank(originalRefreshToken) || !originalRefreshToken.equals(refreshToken)) {
return ResponseResult
.builder()
.code(ResponseCodeEnum.REFRESH_TOKEN_INVALID.getCode())
.msg(ResponseCodeEnum.REFRESH_TOKEN_INVALID.getMessage())
.build();
}
// 生成新token
String newToken = JWTUtil.generateToken(issuser, key, secretKey, tokenExpireTime * 1000);
hashOperations.put(TOKEN_CACHE_PREFIX + key, "token", newToken);
redisTemplate.expire(TOKEN_CACHE_PREFIX + key, tokenExpireTime, TimeUnit.SECONDS);
return ResponseResult
.builder()
.code(ResponseCodeEnum.SUCCESS.getCode())
.msg(ResponseCodeEnum.SUCCESS.getMessage())
.data(newToken)
.build();
}
}
2. 校验Token
GatewayFilter和GlobalFilter都可以，这里用GlobalFilter
pom.xml
<dependencies>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-gateway</artifactId>
</dependency>
<dependency>
<groupId>com.mk</groupId>
<artifactId>commons-jwt</artifactId>
<version>1.0-SNAPSHOT</version>
</dependency>
</dependencies>
application.yml
server:
port: 80
spring:
application:
name: gateway-service
redis:
url: redis://10.32.15.78:6379
AuthorizeFilter.java
@Component
public class AuthorizeFilter implements GlobalFilter, Ordered {
@Value("${secretKey:!@#$%^&*}")
private String secretKey;
@Value("${issuser:mark}")
private String issuser;
@Autowired
private RedisTemplate redisTemplate;
private static final String TOKEN_CACHE_PREFIX = "auth-service:";
@Override
public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
ServerHttpRequest serverHttpRequest = exchange.getRequest();
ServerHttpResponse serverHttpResponse = exchange.getResponse();
String token = serverHttpRequest.getHeaders().getFirst("token");
if (StringUtils.isBlank(token)) {
serverHttpResponse.setStatusCode(HttpStatus.UNAUTHORIZED);
return getVoidMono(serverHttpResponse, ResponseCodeEnum.TOKEN_MISSION);
}
// 检查是否可以解密
String username = null;
try {
username = JWTUtil.getUserInfo(token);
} catch (JWTDecodeException e) {
return getVoidMono(serverHttpResponse, ResponseCodeEnum.TOKEN_INVALID);
}
if (StringUtils.isEmpty(username)) {
return getVoidMono(serverHttpResponse, ResponseCodeEnum.TOKEN_INVALID);
}
// 检查Redis中是否有此Token
String key = MD5Util.getMD5Str(username);
if (!redisTemplate.opsForHash().hasKey(TOKEN_CACHE_PREFIX + key, "token")) {
return getVoidMono(serverHttpResponse, ResponseCodeEnum.TOKEN_INVALID);
}
try {
JWTUtil.verifyToken(issuser, token, secretKey);
} catch (TokenAuthenticationException ex) {
return getVoidMono(serverHttpResponse, ResponseCodeEnum.TOKEN_INVALID);
} catch (Exception ex) {
return getVoidMono(serverHttpResponse, ResponseCodeEnum.UNKNOWN_ERROR);
}
return chain.filter(exchange);
}
private Mono<Void> getVoidMono(ServerHttpResponse serverHttpResponse, ResponseCodeEnum responseCodeEnum) {
serverHttpResponse.getHeaders().add("Content-Type", "application/json;charset=UTF-8");
ResponseResult responseResult = ResponseResult.builder()
.code(responseCodeEnum.getCode())
.msg(responseCodeEnum.getMessage())
.build();
DataBuffer dataBuffer = serverHttpResponse.bufferFactory().wrap(JSON.toJSONString(responseResult).getBytes());
return serverHttpResponse.writeWith(Flux.just(dataBuffer));
}
@Override
public int getOrder() {
return 0;
}
}
网关配置
GatewayConfig.java
@Configuration
public class GatewayConfig {
@Bean
public RouteLocator myRoutes(RouteLocatorBuilder builder) {
return builder.routes()
.route(p -> p
.path("/baidu")
.uri("http://www.baidu.com"))
.build();
}
}
标签: SpringCloud Gateway JWT
